Product Introduction

Light weight and intergrated design, ground installation.

Using for events performance, quick installation and programming.

Supported power supply: 200V-440V, 50 60HZ
Motor type: servo motor

Parameters:

Load: up to 400KG
Moving speed: up to 0.3m/s
Rotation speed: up to 18 °/s
Rotation angle: ± 360 °
Precision control: ± 0.5mm
Noise control: ≤ 55 DB

Material: aluminum
Trolley weight: 150kg

Trolley thickness: 300mm

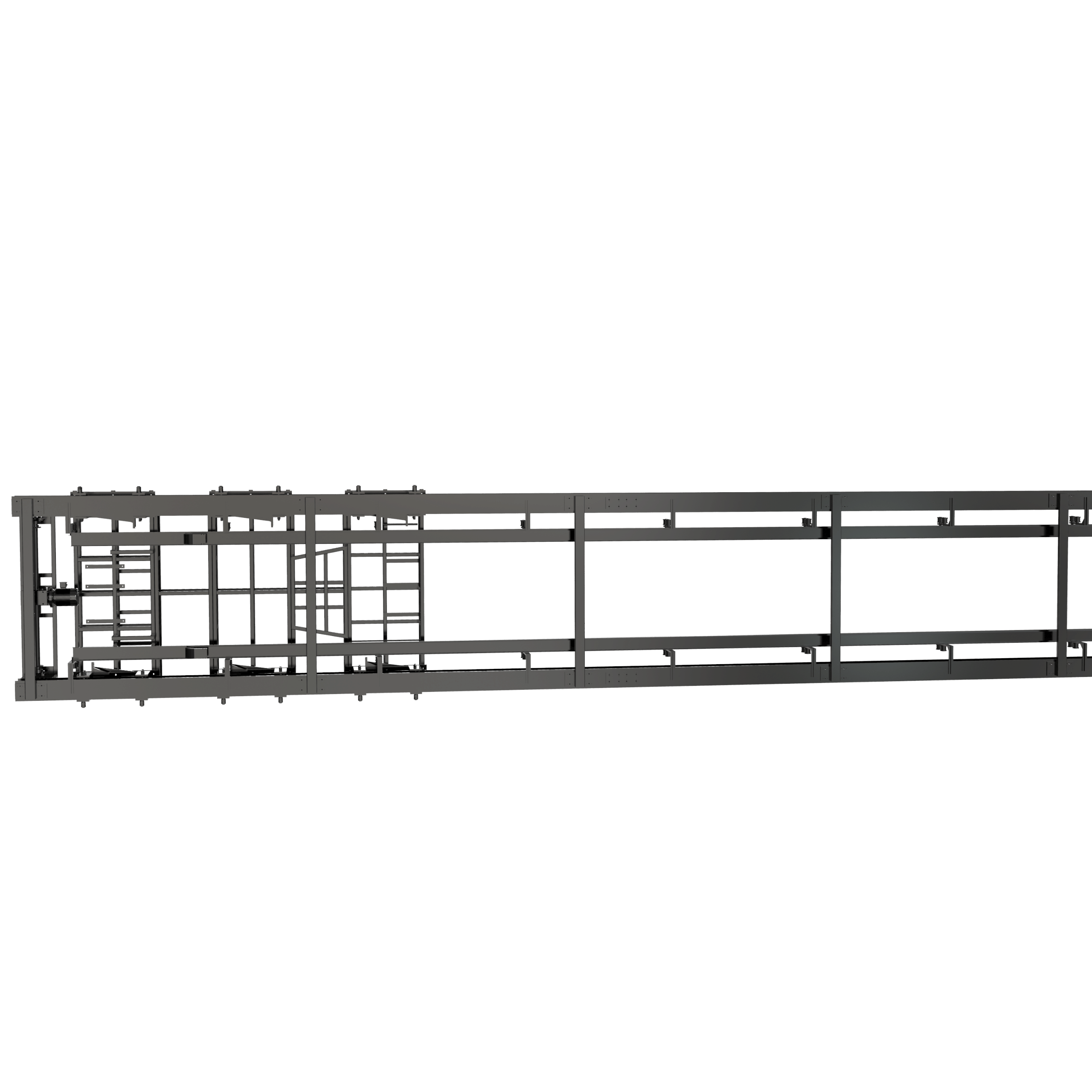

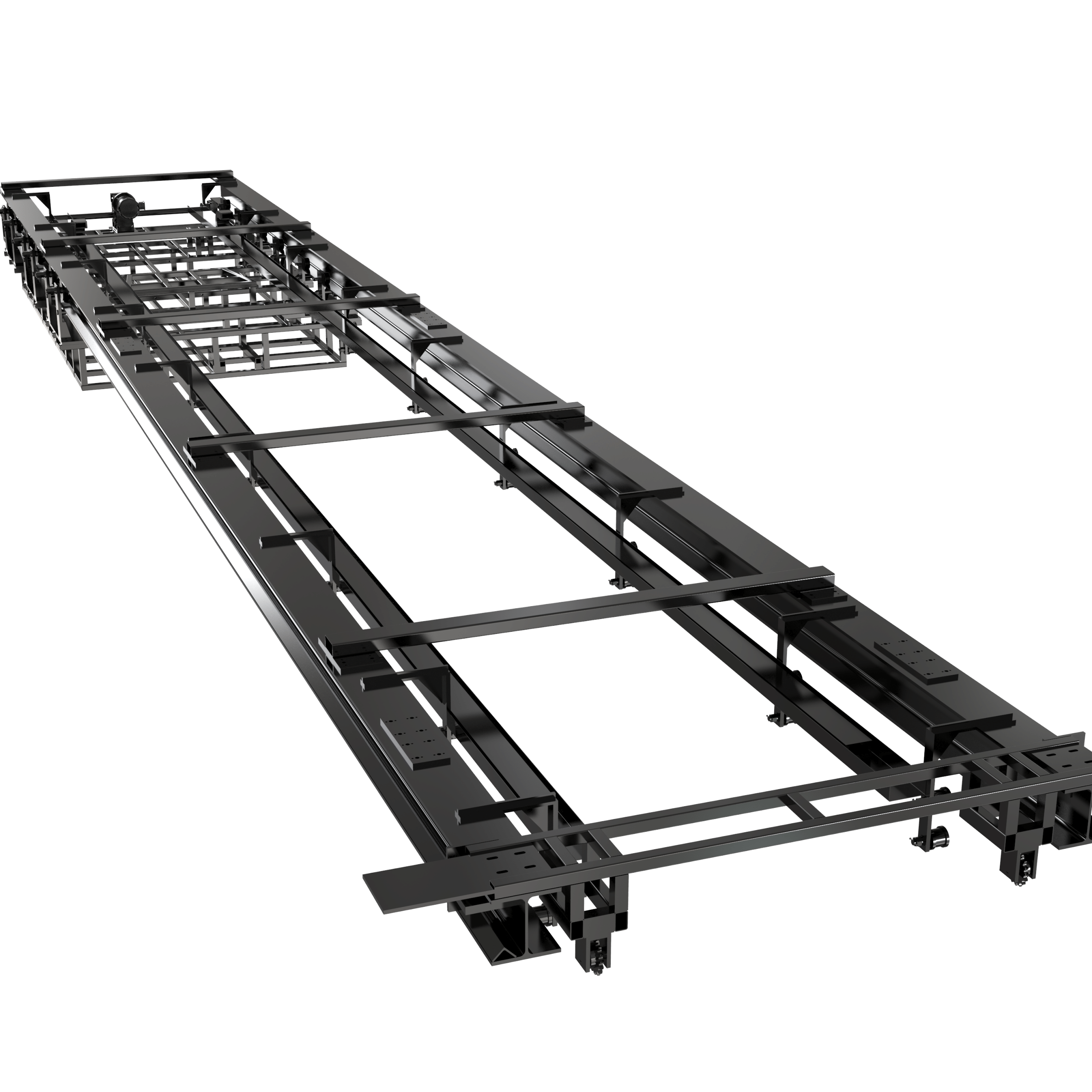

Track: 1m, 2m, 3m,  33kg/m

Trolley size: 1400*1400*300mm (customizable)
